Sleep and learning timeline



Sleep is vital for learning. To sleep well and to learn well, you need to understand your own circadian rhythm. Timeline in SuperMemo was designed to assist you in that task. It can help you optimize the timing of sleep as well as the timing of your learning. You can inspect the timeline of learning generated automatically, and log your sleep data manually. Collecting your sleep data can be useful in understanding the link between sleep and learning.

At minimum skill level, you can use Timeline for basic visual inspection of your favorite learning and sleep hours. However, more advanced functions such as optimizing the time for learning or the time for sleep require advanced analysis and understanding of circadian rhythms. Currently, the toolset for analysing the impact of sleep on learning is very limited. However, if you start logging your sleep data today, you will be able to use future, more advanced versions of SuperMemo to study and understand your sleep and learning.

You can access Timeline with Tools : Timeline on the main menu or by just pressing F12.

SuperMemo: SuperMemo: Sleep and repetitions timeline displaying repetitions blocks of the current collection (in red) and sleep blocks (in blue)

Sleep blocks are marked in blue. Learning blocks are marked in red. Total learning time on individual days is displayed on the right. Selected sleep block is displayed in yellow. The length of that block is displayed at the bottom.

Repetitions timeline

The timeline of repetitions is collected automatically and is separate for each collection. Each time your make repetitions with SuperMemo, the learning block is added to the timeline (displayed in red).

Sleep timeline

The timeline of sleep must be logged manually. There is only one sleep timeline in SuperMemo (unlike repetition timelines that are separate for individual collections). If you move SuperMemo between computers, remember to move your sleep timeline as well. The timeline is stored in the \sleep subfolder of the SuperMemo folder as sleep.tim (e.g. d:\sm2008\sleep\sleep.tim). This file's name and location cannot be customized. This file is compatible with SleepChart and can be opened and edited in that application independent of SuperMemo.

To log a block of sleep, click the beginning of the block (sleep start) and then click the end of the block (sleep end). You can also start from clicking the end of sleep first. Sleep blocks above 22 hours are disallowed. Sleep blocks cannot overlap with repetitions timeline (you cannot learn with SuperMemo and be asleep at the same time). If you have already collected your sleep data in SleepChart, you can import this data with File : Import SleepChart file. If you import files from SleepChart, you can test for sleep and learning overlaps with Edit : Test for block overlaps. Protection from block overlaps is an important advantage of using SuperMemo over SleepChart, in which it was very easy to fall out of phase in logging data (e.g. by failing to fill out a single day and noticing that only a month later). You can mark blocks of forcefully delayed sleep, as well as mark blocks cut short with an alarm clock or other factors. Please note that you can get best analytical results if you do not artificially regulate sleep (e.g. with an alarm clock, sleeping pills, etc.). Applied models will not fully account for artificial intervention. Last but not least, natural sleep is what you should aim for in learning as well as for the sake of maximum health and well-being. Natural free-running sleep will maximize your fun in life!

Timeline graphs

Currently you can use 5 analytical graphs in Timeline. This set is likely to grow in future releases of SuperMemo as more gets to be known about information that can be extracted from correlations found in sleep&learning data. If you deem the presented analytical power as insufficient today, it should not stop you from collecting sleep data. Start today! Every data point can contribute to valuable conclusions in the future.


Timeline displays repetitions blocks of the current collection (in red) and sleep blocks (in blue). Dates and total repetition time are displayed on the right. Sleep blocks can be consolidated with Consolidate button on the toolbar. For example, if you woke up for 5-10 min. in the night, consolidation will make SuperMemo treat the entire night block as a single entity (short awakenings are a frequent occurrence, even if we are not aware of them, and have little impact on learning). Sleep optimization data can be displayed in this graph. Most importantly, two independent models are used to predict middle-of-the-night points as well as the expected optimum retirement and awakening times. Those approximations may be helpful in optimizing sleep in people who work shifts or sleep in irregular hours for various reasons. For example, after a week of irregular sleep, it may be difficult to determine the optimum retirement hour that is likely to produce best quality sleep. Going to sleep too early might result in premature awakening (which may often ruin the night sleep entirely). Going to sleep too late may result in short night sleep, sleep deprivation, and reduced alertness on the following day. Predicting optimum sleep time on the basis of sleep history is inexact science, and two models used may produce different outcomes. Important! Your natural instinct should always take precedence over mathematical models. Moreover, best results in sleep optimization are accomplished in free-running sleep. If you use an alarm clock, or force yourself awake through the night, or take sleeping pills, the models may not adequately account for the chaotic change that is occurring in your sleep control systems.

It is impossible to provide a sure&simple way of interpreting the following graphs. Only rough guidelines are provided. For more detailed interpretation, send your data to sleep2009(AT)supermemo(DOT)com. Your data will be used to improve future analytics. If possible, you will also receive personal help in interpreting your results.

SuperMemo: Sleep and repetitions timeline displaying repetitions blocks of the current collection (in red) and sleep blocks (in blue) with recomputed circadian approximations on the current data

Computing optimum sleep hours may be useful, for example, when recovering from a night shift.

Blue and red continuous lines are predictions of optimum sleep time using the SleepChart model (based on sleep statistics). Yellow continuous line shows the prediction of the maximum of circadian sleepiness (circadian middle-of-the-night peak) using a phase response curve model. Note that theoretically, yellow line should roughly fall into the middle between blue and red lines. However, when a distruption of the sleep pattern is severe, those lines might diverge testifying to the fact that it is very hard to build models that fully match the chaotic behavior of the sleep control system subjected to a major perturbation. Aqua dots point to the predicted daytime dip in alertness (i.e. the time when a nap might be most productive).

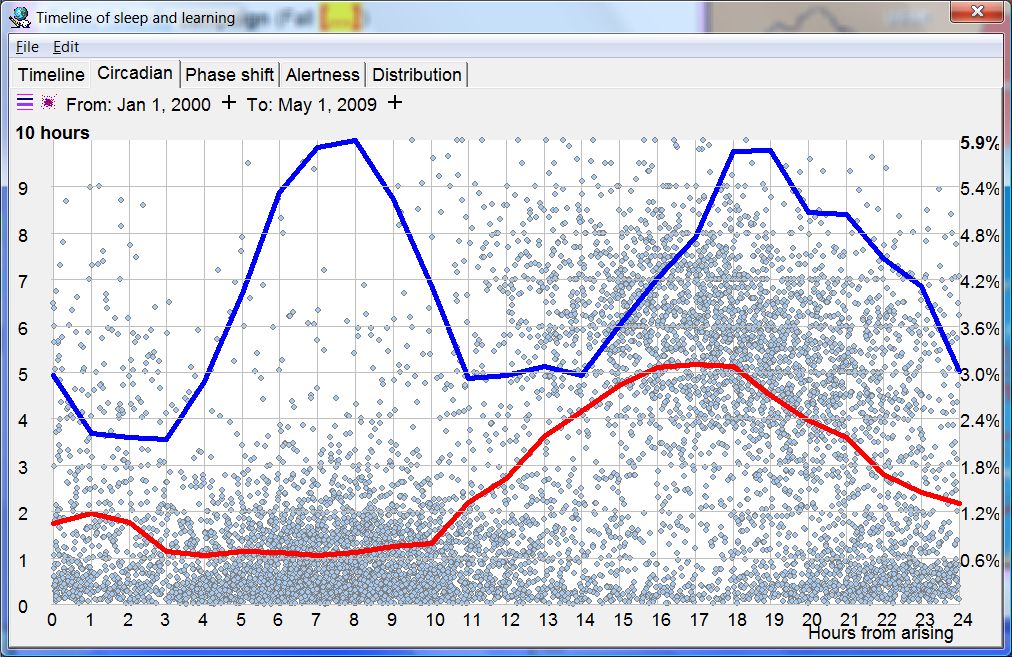

Circadian graph plots your favorite sleep times as counted from natural awakening (blue homeostatic line), as well as the resulting average sleep length produced by various retirement hours (red circadian line). If you are trying to determine your optimum sleep time, see for peaks in the blue homeostatic line and choose near points that produce sufficiently long sleep (high reach of the red curve). In nappers, the blue line should also point to the maximum mid-day alertness dip. However, in this case, short naps may actually be a sign of well-timed naps (if not taken too early in reference to the blue homeostatic line).

SuperMemo: Circadian graph plotting your favorite sleep times as counted from natural awakening (blue homeostatic line), as well as the resulting average sleep length produced by various retirement hours (red circadian line)

Circadian and homeostatic sleepiness

Blue line shows how often sleep is initiated at different periods after awakening (% on the vertical axis on the right). This line is a rough reflection of the homeostatic sleep drive. Red line shows how long sleep lasts depending on the hour at which it was initiated (in reference to the hour of morning awakening)(hours on the vertical axis on the left). This line is a rough reflection of the circadian sleep component (i.e. the longest sleep blocks occur during the subjective night).

In the presented example, on average, the best sleep is obtained when initiated after 18 hours from morning awakening (homeostatic peak combined with a sufficiently long sleep period). This example also shows that the good siesta time should begin 7-8 hours from awakening. For example, for an awakening at 6 am, siesta could begin at 2 pm, and the night sleep at midnight.

Phase shift

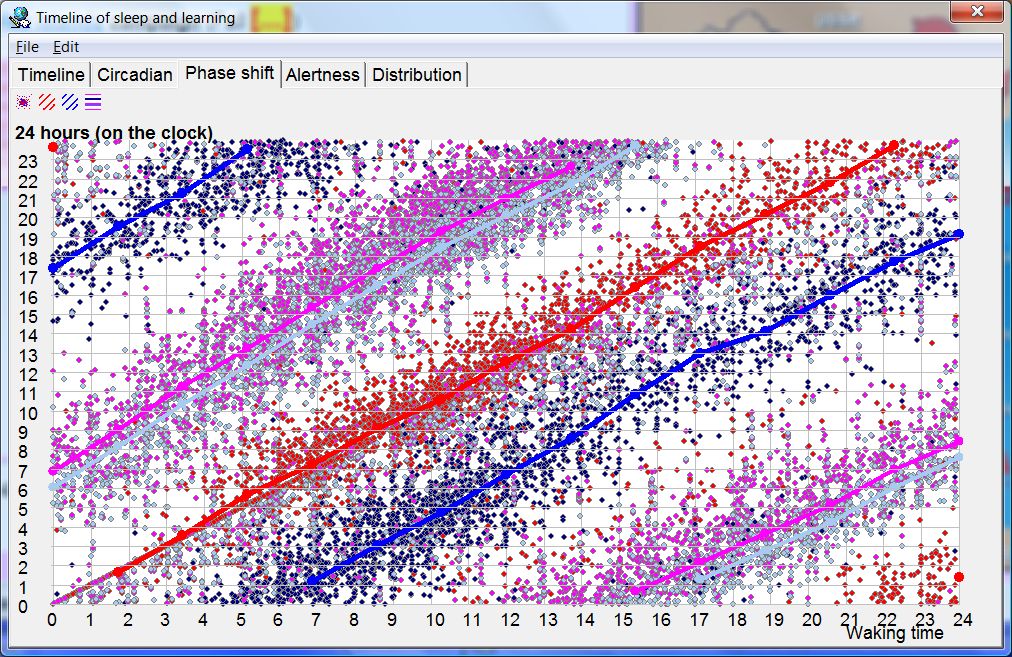

Phase shift graph is helpful in people practising free-running sleep who suffer from a degree of phase-shift (ASPS or DSPS). In free-running sleep, this graph will display the degree of phase-shift as well as its dependence on the time of the day.

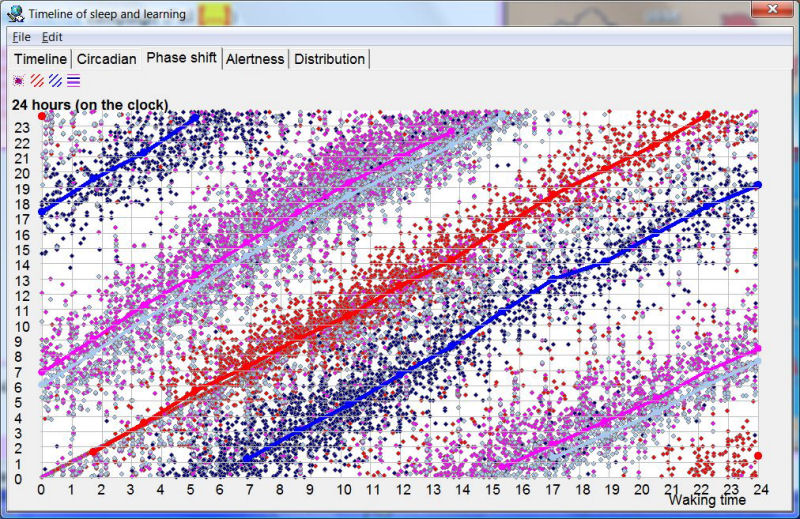

SuperMemo: Phase shift graph displaying the degree of phase-shift (ASPS or DSPS) as well as its dependence on the time of the day

Blue line indicates retirement hours. Red line indicates waking hours. Fuchsia and gray lines indicate siesta period. Even though the red waking line begins at the origin of the graph, it shows a substantial phase shift at later hours. The sign of the shift will depend on whether it is caused by an advanced or a delayed sleep phase shift syndrome.


In a healthy individual who is not sleep deprived and who sleeps in the correct phase, the best learning results are obtained early in the morning and after a siesta. You can see how fast your alertness (and grades) drop during the day by inspecting the Alertness graph. In this graph, you can see the time that has passed since the last sleep block, and how grades change in waking. The minimum length of sleep blocks that are considered is determined by Min. sleep block (h) box (0.2 hours, or 12 min. is the default minimum sleep block taken into consideration).

If you have already collected your sleep data with SleepChart, you can see your wake-grade correlation with SuperMemo 2008. However, only repetitions executed with SuperMemo 2006 (or later) will count (earlier SuperMemos did not store precise time of repetitions in repetition history).

SuperMemo: Tools : Timeline : Alertness graph makes it possible for you to visually inspect how grades decrease during the waking day. It also shows the impact of circadian factors with grades slightly lower immediately after waking and slightly higher after the mid-day dip in the 9th hour

Alertness graph makes it possible for you to visually inspect how grades decrease during the waking day. It also shows the impact of circadian factors with grades slightly lower immediately after waking and slightly higher after the mid-day dip in the 9th hour. The Deviation parameter displayed at the top tells you how well the negatively exponential curve fits the data. The lesser the deviation, the better the fit. The deviation is computed as a square root of the average of squared differences (as used in the method of least squares).

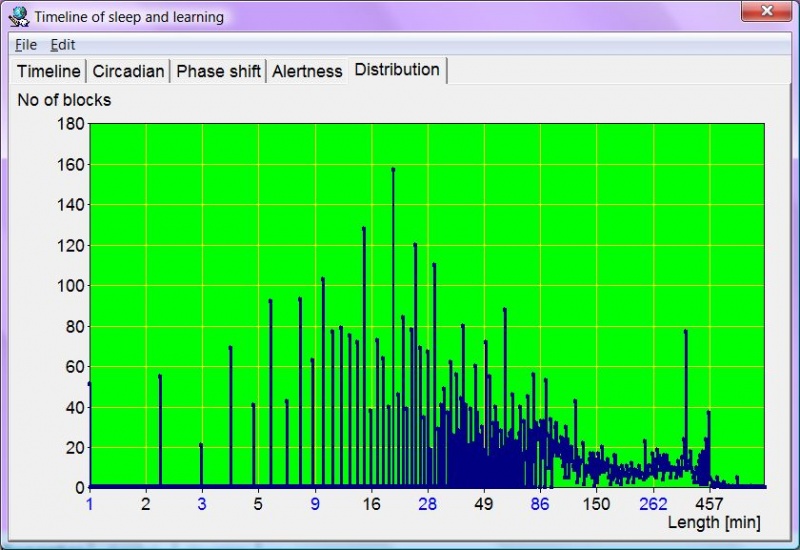

This graph tells you how long your usual sleep blocks are. For example, is it true that your sleep blocks form a multiple of 90 min. (or some similar ultradian cycle)?

SuperMemo: Distribution graph makes it possible for you to tell how long your usual sleep blocks are

Distribution of the length of sleep blocks.

Two-component sleep model

SuperMemo uses a two-component sleep model inspired by the publications of Alexander A. Borbély and Peter Achermann. Unlike other models, SuperMemo uses your sleep data to predict the homeostatic and circadian status of your alertness. This may be helpful in choosing the optimum time for learning on a given day (given a particular history of sleep). This can also help you plan your sleep many hours in advance if your sleep pattern is highly irregular. The model does not predicate on the timing and duration of REM and NREM sleep episodes.

Important! This is the first release of the presented model to a wider public and should only be used for educational purposes as well as an inspiration in planning your sleep and learning. There are individual genetic differences that affect the length of the circadian cycle, steepness of the homeostatic decline in alertness, sleep length preference, sleep architecture, etc. This model is limited in accounting for these variables. If you are sleepy against the simulations based on the model, you can probably trust your own instincts better. If you feel alert against the simulations based on the model, you can certainly get down to learning and ignore predictions of the model. Moreover, sleep patterns are a good measure of your sleep control systems only if they are not artificially disturbed (e.g. by forcefully delaying sleep, using alarm clock, using sleeping pills, etc.). In other words, if you are not free running your sleep, the presented model may fail to map your circadian rhythms correctly. You can mark blocks as artificially shortened or delayed (Forced awakening and Delayed retirement on the context menu available with a right-click). However, marked blocks will have a limited effect as there is no way of knowing the degree of the cut into the sleeping patterns, and, consequently, knowing the resulting perturbation in the control system produced by artificially modified sleep.

To see the predictions of the model for any given day, make sure you have your sleep data filled out for recent days, and shift-click the day in question.

SuperMemo: The predictions of the two-component sleep model about the homeostatic and circadian status of your alertness

Two-component sleep model: Blue blocks show the actual sleep blocks. Aqua line shows the 24h circadian sleep drive with a mid-day hump. Green line is an inverse of the homeostatic sleep drive and can be interpreted as homeostatic alertness. This component declines exponentially during wakefulness and is quickly restored by slow-wave sleep (for simplicity, the entire sleep block is assumed to have a contribution proportional to its length, as the model does not accounts for sleep stages). Yellow vertical lines show the prediction of the maximum of circadian sleepiness (circadian middle-of-the-night peak) using a phase response curve model. Red line shows cumulative alertness (peaks are best for learning, valleys are best for sleep). For example, Alertness on Oct 1, 2008 at 7:43 was predicted to be at 59% of the maximum but would increase fast in the first 2 hours of wakefulness (a typical symptom of a night sleep that is terminated too early). The picture shows two peaks in alertness on Oct 1, 2008, at 9 am and at 7 pm. Those periods would likely be best suited for learning on that day.

To see a more accurate reflection of the homeostatic decline in alertness during wakefulness, see the Alertness tab.


You can abandon SleepChart


I used to log my sleep into SleepChart. Once this file is imported to SuperMemo, should I abandon the SleepChart file and log sleep details directly into SuperMemo?


Yes. All SleepChart functionality has been included in SuperMemo. You can quickly get the Timeline with F12. However, there is full compatibility at the file level, and you can always go back to SleepChart in the future, or introduce sleep blocks using SleepChart if it is more convenient (and does not lead to confusion). All you need to remember is to use the file at the right location: SuperMemoFolder/sleep/sleep.tim. SuperMemo will always use the file at this location only.

You need to copy sleep timeline when reinstalling SuperMemo


I installed a new version of SuperMemo and copied my collections into that installation. However, my sleep timeline disappeared.


In addition to copying your collections, you will need to copy the following file: <SuperMemoFolder>\sleep\sleep.tim. This file must be placed in the \sleep folder in the new installation.

Gaps in Timeline


I had been meticulously recording my sleep for about 6 months until I lost track for a couple of weeks and then began recording my sleep once more. How are such gaps in SleepChart/Timeline treated? Can anything be done afterwards to minimise the damage to the data?


Currently, SuperMemo has very weak protections against missing data. If you use your data to study sleep cycles, you could try to roughly estimate the sleep hours for the period and fill in the approximate data. However, it is hard to say how this will affect sleep&learning correlations. Even a small change could produce a major difference in graphs. You could backup sleep.tim file, fill in the approximations and peek at the alertness graph. If it has not been disturbed much, you might leave the approximated data and hope that with the inflow of new sleep and learning data, the damage will be diluted. Hopefully, overtime, SuperMemo will add mechanisms to better cope with missing sleep data. However, if you want to understand your own sleep and memory, you would do best by just being religiously systematic with logging in your sleep blocks.
